Rest API Automation Framework

Introduction:

This post explain about the way how to design a Rest API Automation framework from scratch.

As a pre-requisite you should familiar with following listed items.

• Java – Programming Language
• Maven – Build Automation Tool
• Lombok – Boilerplate
• Rest Assured – Library to test Rest API
• Testng – Testing Framework
• Gson – Serialization and de-Serialization (Pojo)
• Design Pattern
  • Builder Design Pattern

API To Automate

API Request:

curl --location --request POST 'https://petstore.swagger.io/v2/pet' \
--header 'Content-Type: application/json' \
--data-raw '{
    "id": 1,
    "category": {
        "id": 1,
        "name": "dog"
    },
    "name": "scoobydoo",
    "photoUrls": [
        "https://www.cdc.gov/healthypets/images/pets/cute-dog-headshot.jpg?_\u003d42445"
    ],
    "tags": [
        {
            "id": 1,
            "name": "scooby"
        }
    ],
    "status": "available"
}'

API Response:

{
    "id": 1,
    "category": {
        "id": 1,
        "name": "dog"
    },
    "name": "scoobydoo",
    "photoUrls": [
        "https://www.cdc.gov/healthypets/images/pets/cute-dog-headshot.jpg?_=42445"
    ],
    "tags": [
        {
            "id": 1,
            "name": "scooby"
        }
    ],
    "status": "available"
}

 The Above request can be imported in POSTMAN. Copy the curl and import the data and fire the request. For the request sent a response will be received.

Necessary Item Required to Automate Rest API

To make a basic request the following items are required

• HTTP Verb – (Post,Get etc…)
• Base URL – (Eg:- https://api.x.com)
• Resource Path – (Eg:- /v1/users)
• Headers -> Required Header details and should add What content-type that we transit. Mostly it should be Application/json.
• Body -> Json data

Once the Request is Fired, The server process the request based on business logic and return response. The basic response consists of following items.

• Status Code – (200 – success etc .. )
• Response Body -> Json data
• Response Header

Automation Architecture

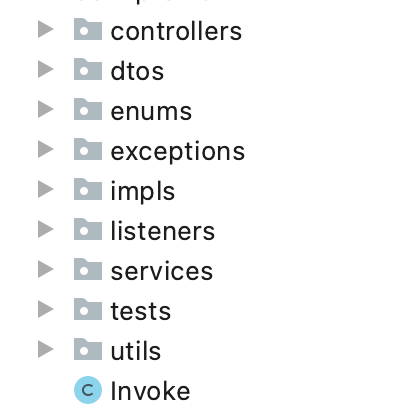

Components in Architecture:

Controllers

• Controllers consists of common code to define control request flow.
• Controller consists of following items
  • Authorization – Credential for different services can be added here
  • Constants – All static value required during flow will be added here
  • Test Group – Common place to define test groups
  • Route – Resource path

Dtos

• Data transfer object consists of API contract details of request and response as class object.

Enums

• Enums that required while test can be added

Exception

• Exception that need to be handled inside test flow. This help on testing negative scenarios.

Impl

• Implementation consists of API contract for each route related to a service.

Listeners

• Listeners are type that helps to added extend functionality that help to improve the test automation process such as reporting, Retry mechanisms etc…

Services

• Services consists of the Rest assured library implementation and that uses rest assured library to fire a rest api request and receive response.

Tests

• Test consists of test data and test steps to verify and validate the api’s

Utils

• Utils is a common package for adding utilities that required across test automation.

Code Walkthrough:

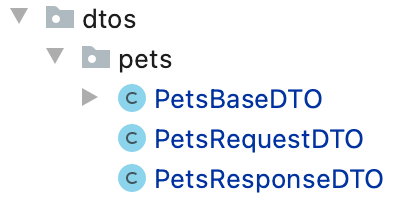

• Request/Response DTO is added under the package of the service.
• Common entity from request and response can be added to Base DTO.

Automation Framework Code:

https://github.com/premsvmm/API-TAF

Execution Workflow
